제품 설명

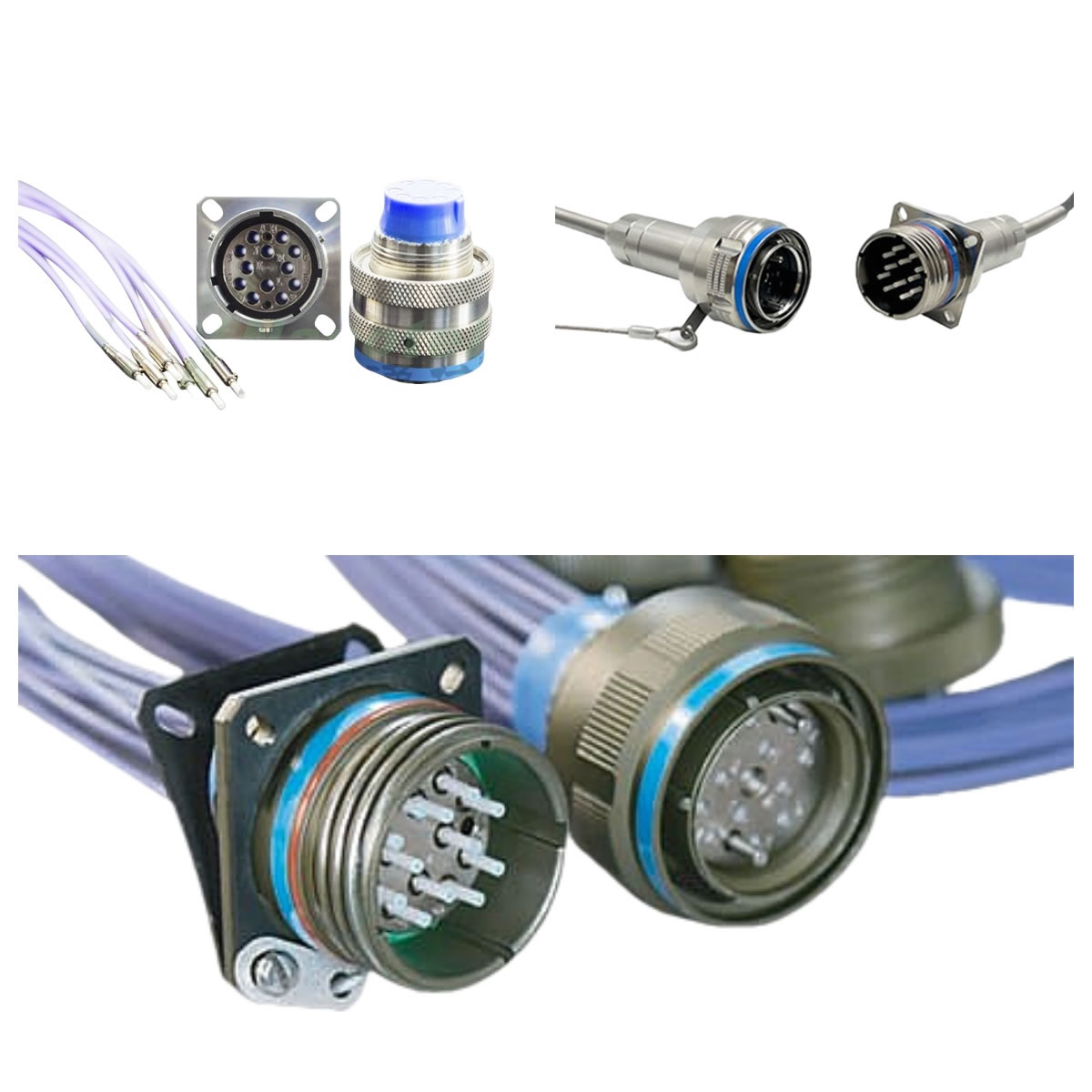

A high-reliability expanded beam fiber optic connector designed to meet GJB599B/MIL-DTL-38999 Series III interface requirements, with performance compliant with ARINC 801 standards, delivering exceptional optical performance in demanding aerospace and defense environments.
The non-contact expanded beam optical structure ensures stable transmission under dust, vibration, and repeated mating/unmating conditions. The ceramic O-ring sleeve provides superior port protection, significantly extending service life.
주요 특징
- GJB599B (MIL-DTL-38999 III) interface compatible, optical performance meets ARINC 801 standard
- Designed for multi-channel optical communication in aviation, electronics, and marine systems

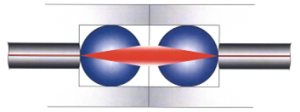

- Beam-expanding lens design for true non-contact optical docking
- Closed O-ring ceramic sleeves greatly improve insertion/removal endurance
- Excellent dust resistance, suitable for harsh environments
- Easy termination and extraction using standard M81969/14-03 tools
기술 사양
기계적 성능
| 매개 변수 | 스펙 |
| 기계적 수명 | 2000 mating cycles (plug/unplug) |
| 내 충격성 | Peak acceleration: 2940 m/s²Duration: 3 msSpeed change: 5.61 m/s |
| 진동 | Frequency: 10 Hz – 2000 HzPower spectral density: 0.4 G²/HzAcceleration (RMS): 23.1 G |
| 인장 저항 | ≥ 68 N (Φ2 mm 케이블) |
환경 성과
| 매개 변수 | 스펙 |
| 작동 온도 | −55 °C to +125 °C (depending on cable) |
| 소금 안개 저항 | K: 500 hF: 48 hW: 500 hMW: 192 h (acidic atmosphere) |
| Airtightness (airtight adapter socket) | Gas leakage rate ≤ 1 × 10⁻⁹ Pa`m³/sPressure differential: 1 atm |
광학 성능
| 매개 변수 | 스펙 |
| 삽입 손실 | ≤ 0.6 dB @ 850 nm≤ 1.0 dB @ 1310 nm |
| 반사 손실 | ≥ 20 dB @ 850 nm≥ 45 dB @ 1310 nm |
Custom Expanded Beam Connectors & Reliable Alternatives to Leading Global Brands
We provide customized expanded beam fiber optic connectors tailored to your exact application needs, while offering cost-effective and reliable alternatives to major international brands. From design to cable assembly, our engineering team ensures seamless integration and dependable performance in harsh environments.
어플리케이션
항공우주 및 항공전자공학
Used in aircraft systems where vibration resistance and reliable optical transmission are essential.
군사 및 국방
Provides stable fiber connections for tactical communications in dusty and high-shock environments.
해군 및 해병대
Ideal for shipboard and offshore systems exposed to moisture, salt spray, and harsh conditions.
산업 및 혹독한 환경
Ensures reliable data transmission in factories, mining, and oil & gas applications.
Broadcast & Outdoor Communication
Suitable for outdoor broadcasting and field networks requiring fast and reliable fiber connections.
FAQ
1. What is an expanded beam fiber optic connector?
Expanded beam connectors use optical lenses to expand and collimate the light beam, allowing non-contact optical transmission. This design improves resistance to dust and contamination.
2. What standards do your connectors support?
Our connectors can be designed to comply with MIL-DTL-38999, MIL-DTL-83526, and ARINC 801 standards.
3. 사용자 정의를 지원합니까?
Yes. We can provide customized solutions including fiber count, connector interface, and cable assemblies according to project requirements.
4. Can your products replace well-known international brands?
Yes. Our expanded beam connectors are designed to provide performance comparable to leading global brands, while offering flexible customization and competitive pricing.
5. What industries use expanded beam connectors?
They are widely used in aerospace, defense, industrial equipment, outdoor communication systems, and harsh environment applications.
6. What are the advantages of expanded beam connectors?
Strong resistance to dust and contamination；Longer mating life；Reduced cleaning requirements；Reliable performance in harsh environments.
Why Cooperate With Us
Professional Expanded Beam Connector Manufacturer
We provide reliable expanded beam fiber optic connectors designed for demanding applications such as aerospace, defense, and industrial systems.
국제 표준 호환성
Our connectors are designed to comply with industry standards such as MIL-DTL-38999, MIL-DTL-83526, and ARINC 801, ensuring seamless integration with existing systems.
맞춤형 디자인 기능
We support flexible customization including shell size, fiber count, cable assemblies, and hybrid optical/electrical solutions to meet specific project requirements.
Reliable Alternative to Global Brands
Our solutions offer high reliability and performance comparable to leading international connector brands, providing customers with a cost-effective and dependable alternative.
품질 및 신뢰성
All products undergo strict testing to ensure stable optical performance and long service life in harsh environments.
전문적인 서비스
We provide complete technical support from connector selection and customization to cable assembly, installation, and long-term engineering support.
Request a quote today and find the right expanded beam connector for your project！
